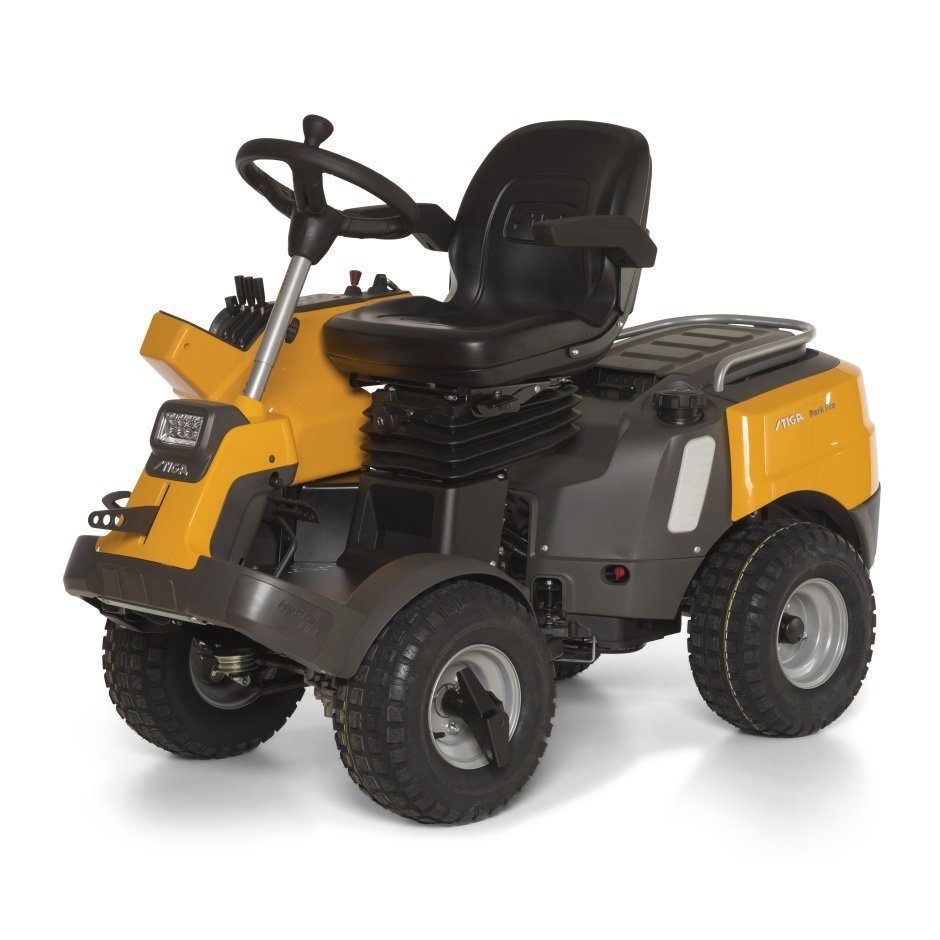

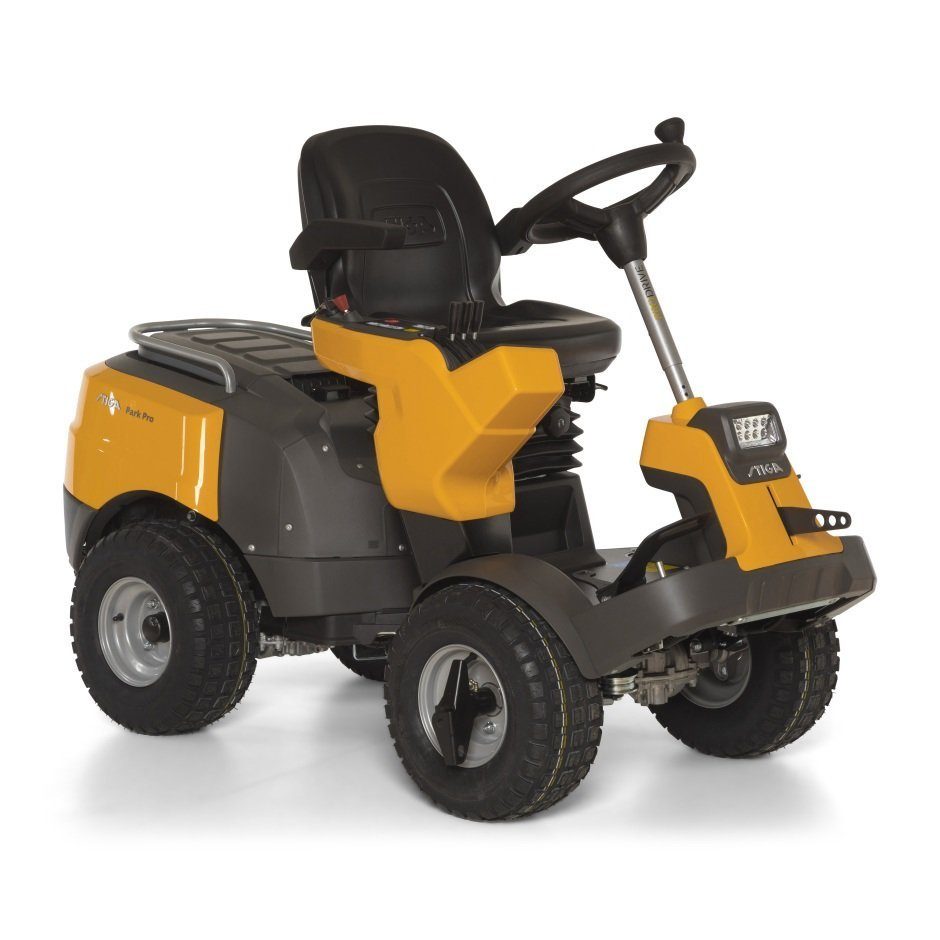

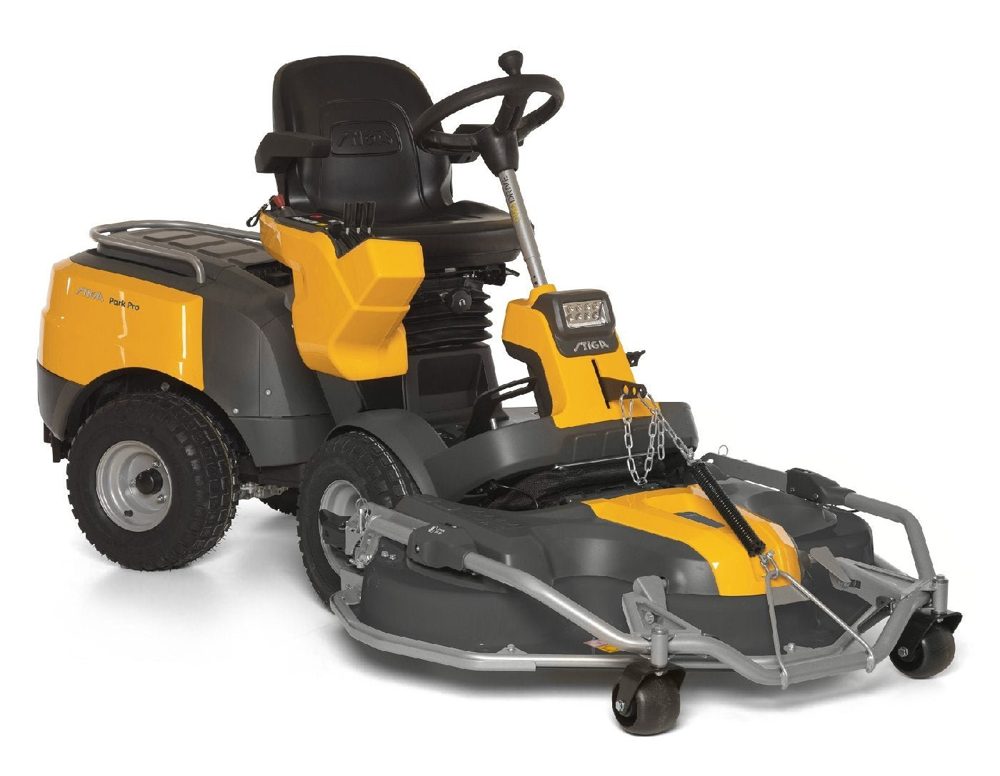

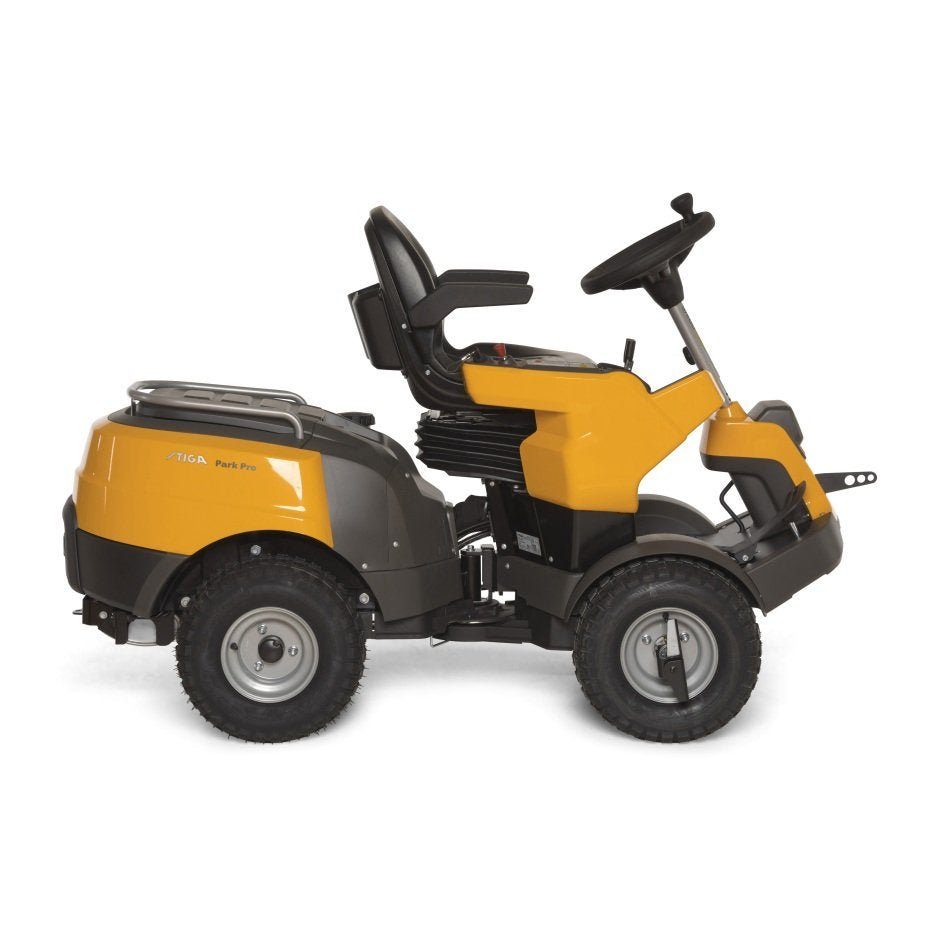

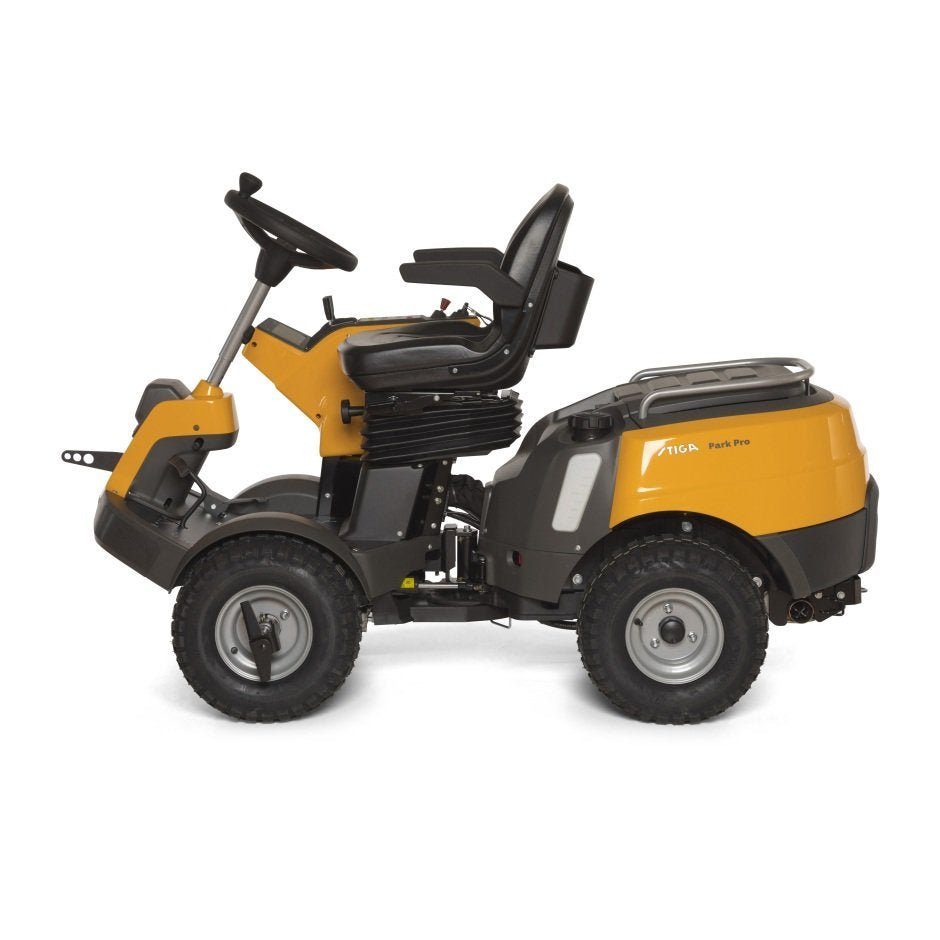

The STIGA Park Pro 900 AWX is the most powerful machine in the Park Pro range and is built for continuous use on large areas. 50/50 articulated steering and a front-mounted deck give a clear view of the cutting path and access to corners that a mid-mounted deck cannot reach. It is supplied as a base unit without cutting deck, which is combined with the matching front deck via the QuickFlip system.
Your benefits
- All-wheel drive and hydrostatic transmission: slopes, uneven ground and damp areas can be tackled safely.
- 50/50 articulated steering with power steering: precise work along borders and beds without the rear bumping into them.
- Front-mounted deck: you can see the cutting edge and mow under shrubs and benches.
- Cutting height 25 to 90 mm, electrically adjustable at the push of a button.

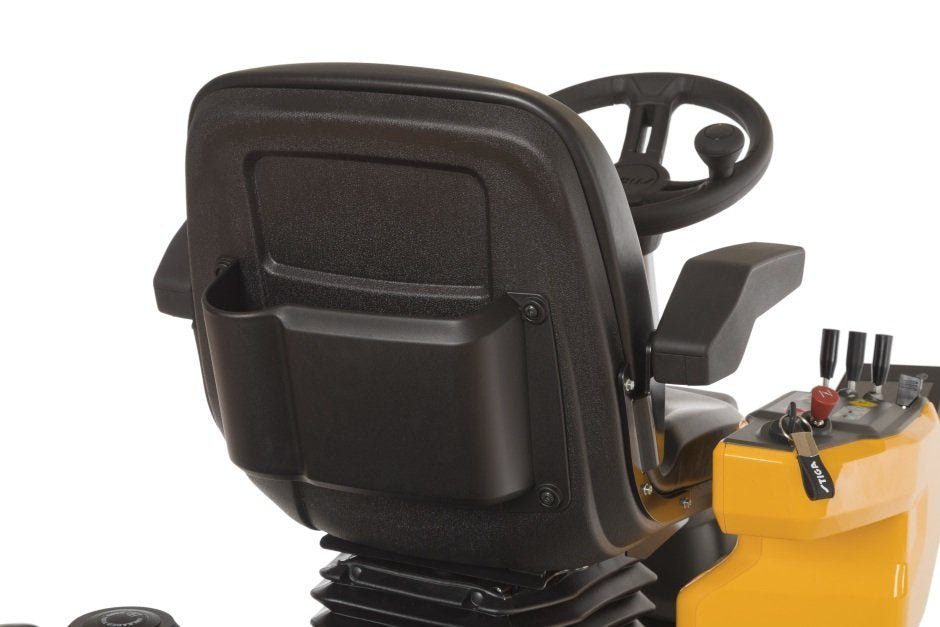

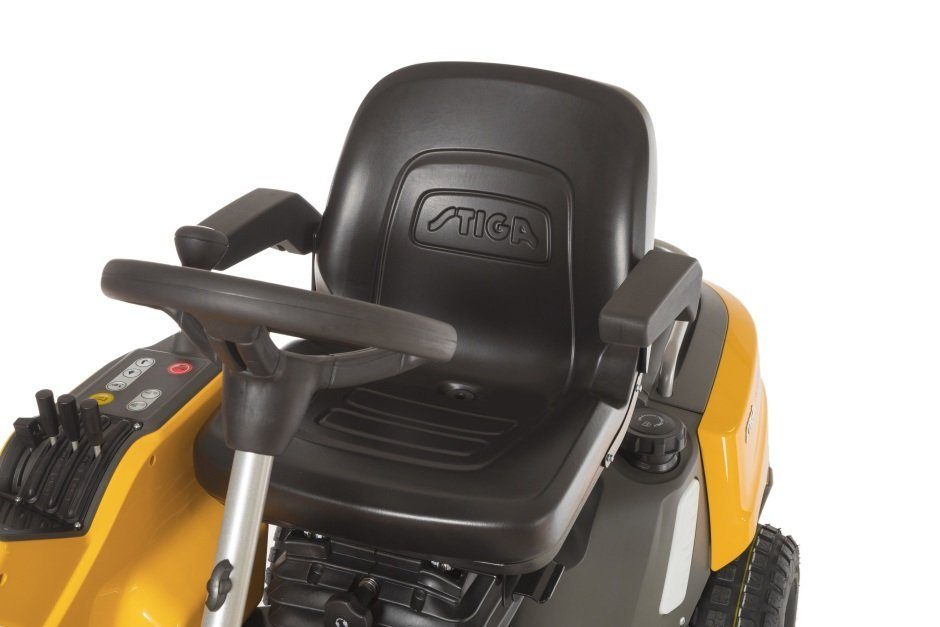

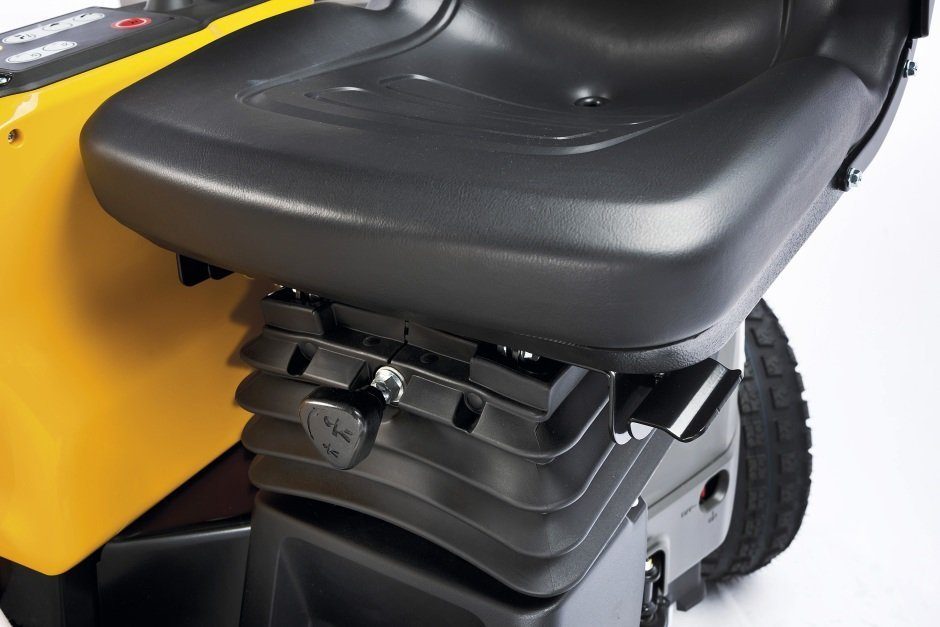

- Comfort seat with high backrest, armrests and a clear side panel for long working days.
Equipment and features
At its heart is the Honda GXV 690 twin-cylinder engine with 688 cm³. The V-twin layout and OHV technology ensure low-vibration running; the dual air filter and pressure lubrication are designed for durability.

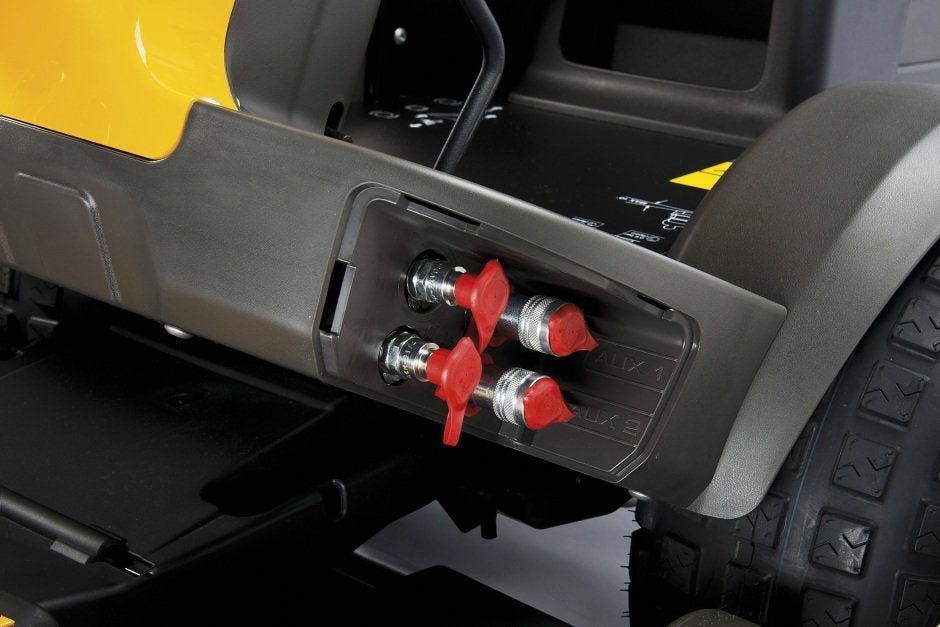

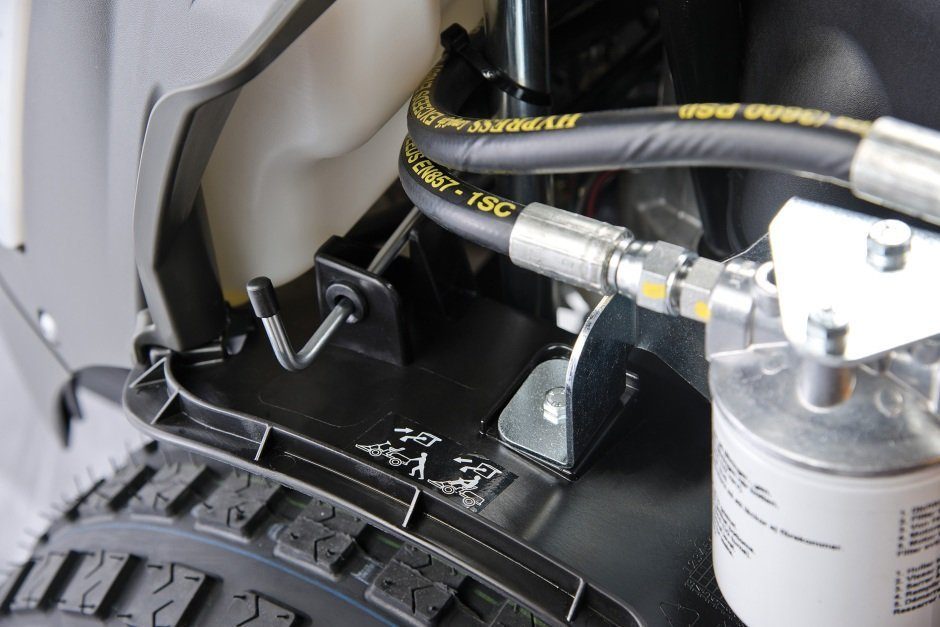

The deck and accessories are engaged via an electromagnetic clutch, and the implement lift is hydraulic and can swivel left and right. As standard the machine offers mulching and rear discharge with windrowing. Mowing in reverse is possible using a safety button on the dashboard.

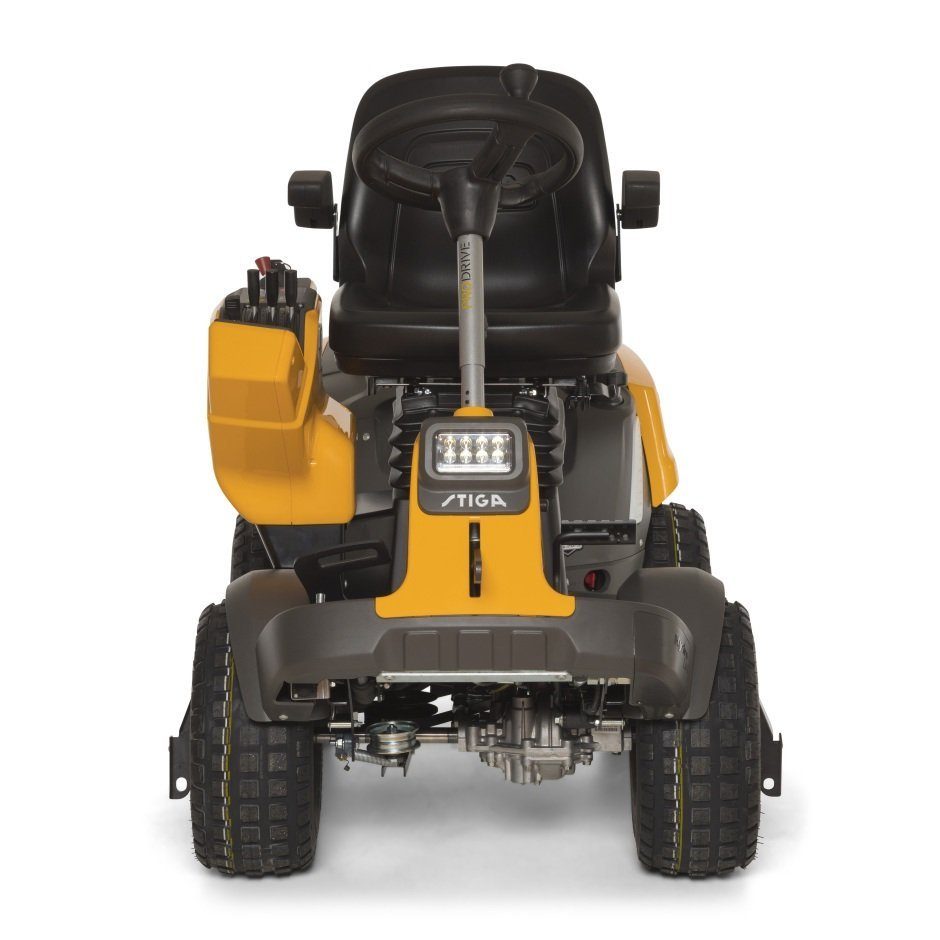

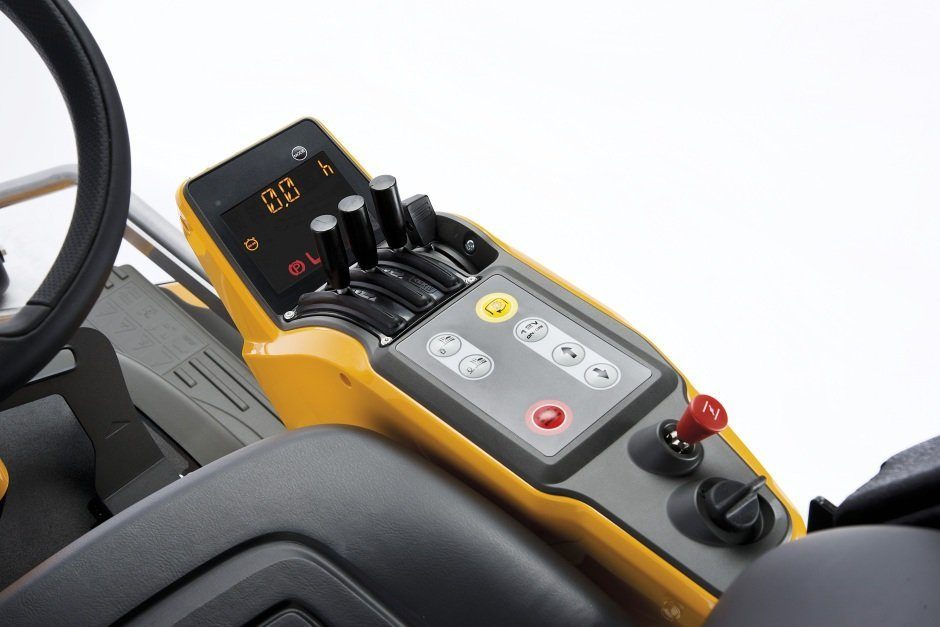

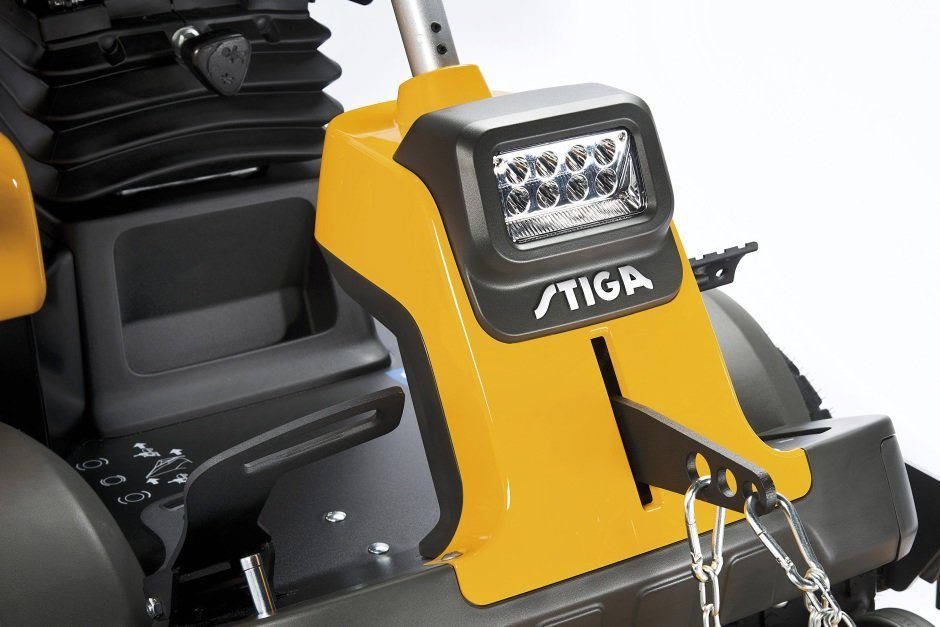

With the QuickFlip system, the cutting deck tilts up for cleaning or can be removed to fit other implements. An hour meter, display and LED headlights are standard equipment.
Technical data
| Engine | Honda GXV 690, 2 cylinders |
|---|---|
| Displacement | 688 cm³ |
| Engine output | 17.3 kW / 23.5 hp at 3600 rpm |
| Machine output | 15.4 kW / 20.9 hp at 3200 rpm |
| Drive | All-wheel drive |
| Transmission | Hydrostatic, infinitely variable |
| Steering | 50/50 articulated steering, hydraulic power steering |
| Max. speed | 14 km/h |
| Fuel tank | 15 litres petrol |
| Cutting width | 95–125 cm (depending on deck) |
| Cutting height | 25–90 mm, electrically adjustable |
| Cutting methods | Mulching, rear discharge with windrowing |
| Max. area | 13,000 m² |

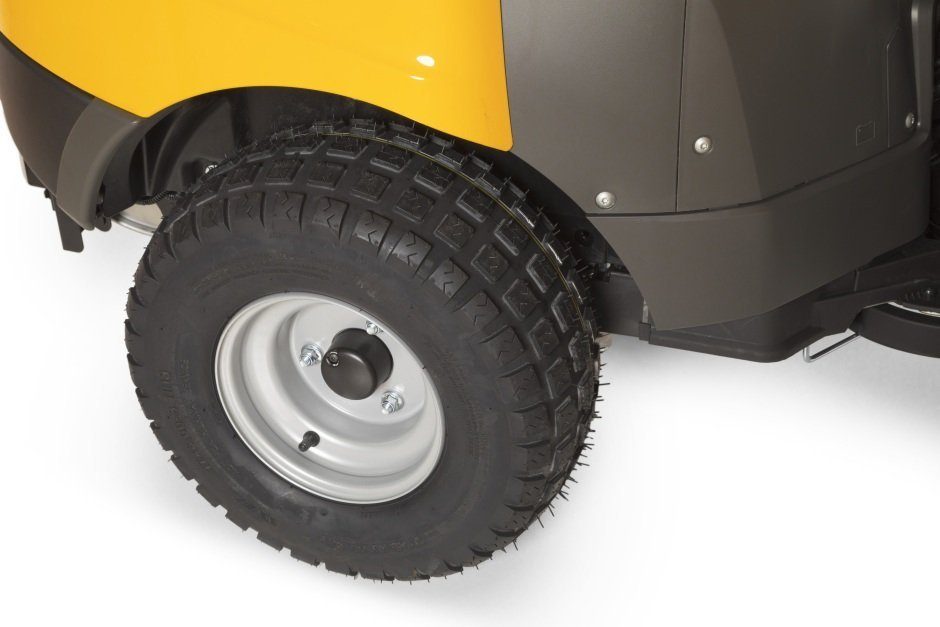

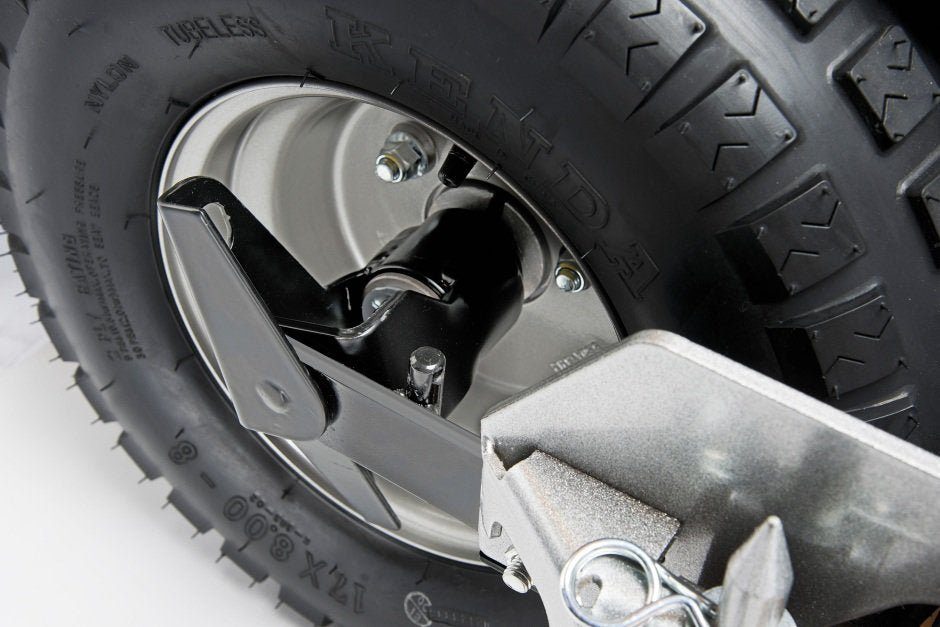

| Tyres | 17×8.00-8″, turf tread |
Which lawns and users is it suitable for?
With a maximum area rating of 13,000 m², the Park Pro 900 AWX is aimed at local authorities, contractors, estates, sports grounds and large private properties. All-wheel drive makes it ideal for slopes, uneven meadows and damp sections; articulated steering and the front deck ensure clean work around trees and beds.
In the box
- STIGA Park Pro 900 AWX base unit without cutting deck
- Towing eye
Frequently asked questions
Is a cutting deck included?
No. The base unit is supplied without a cutting deck. Matching front decks with cutting widths of 95 to 125 cm are fitted via the QuickFlip system.
Can the Park Pro 900 AWX collect clippings?
No. Mulching and rear discharge with windrowing are available as standard; collection and side discharge are not provided according to the data sheet.
Is the machine suitable for slopes and wet areas?
The all-wheel drive is specifically designed for slopes, uneven ground and muddy areas. The data sheet does not state a specific maximum gradient – please feel free to contact us about this.
