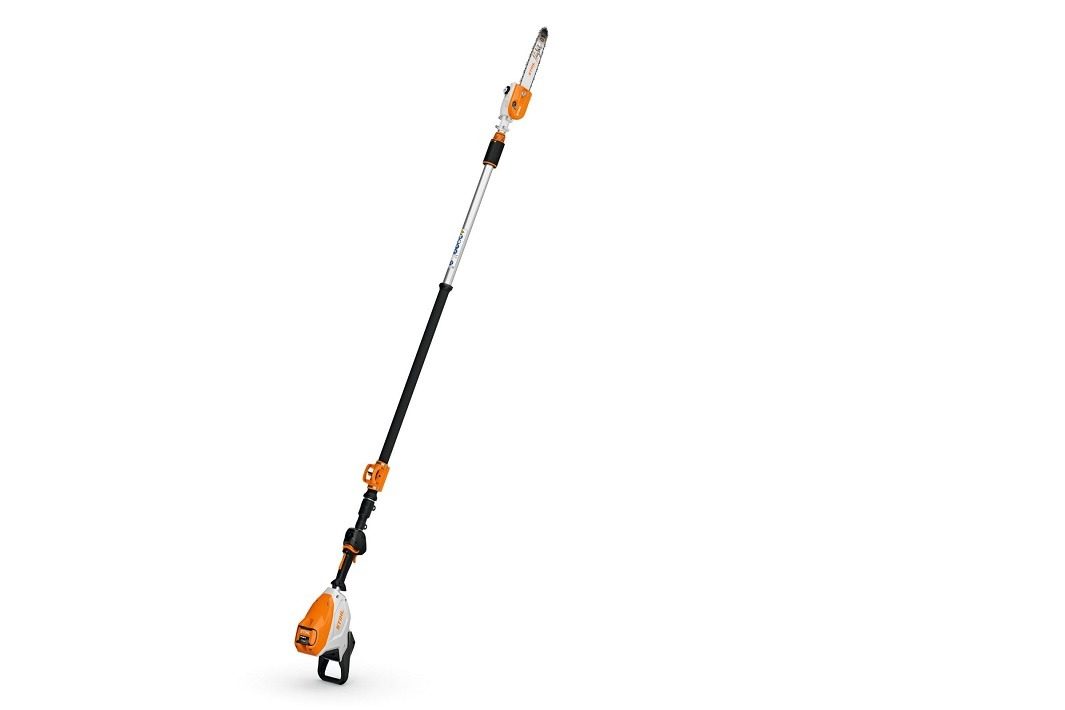

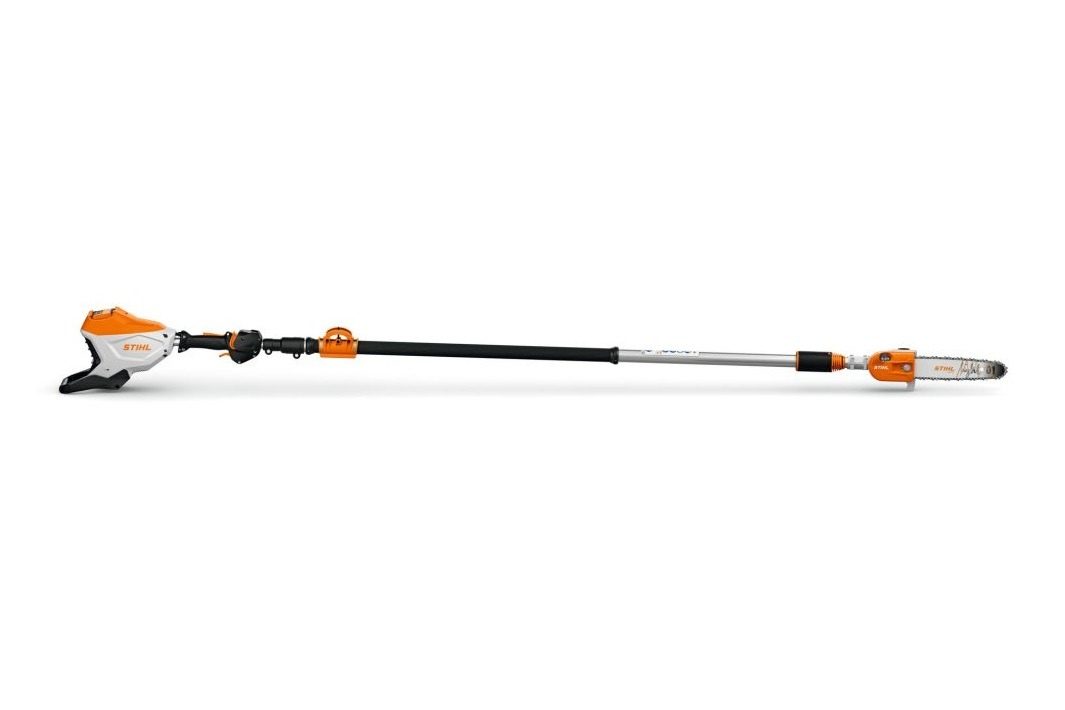

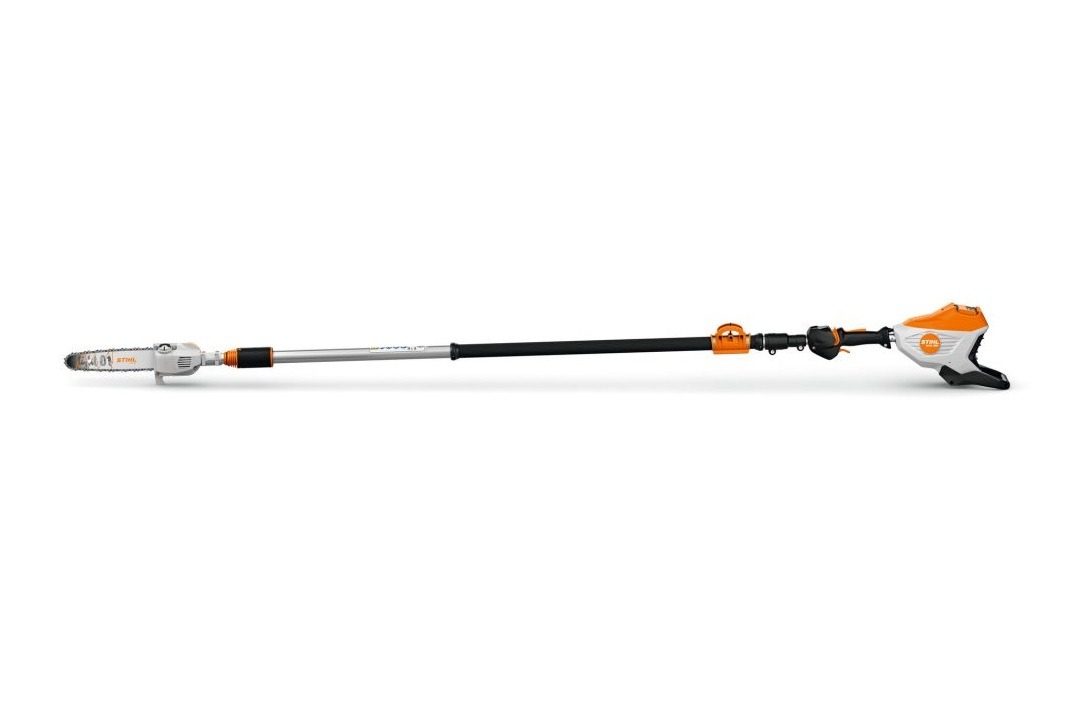

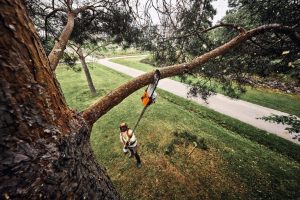

STIHL HTA 160 Cordless Pole Pruner | 1/4″ PM3 Cutting Attachment 30 cm
STIHL cordless pole pruner with professional telescopic shaft from 285 to 405 cm, 30 cm 1/4″P cutting attachment and 1.40 kW output for tree care and fruit growing.
Product description

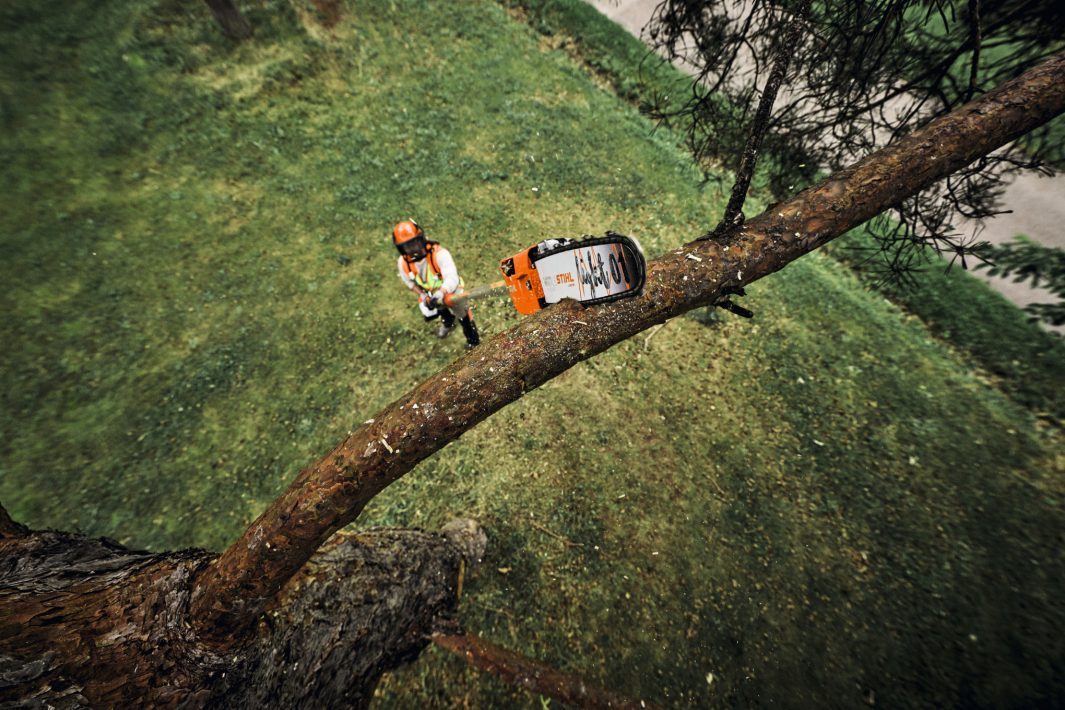

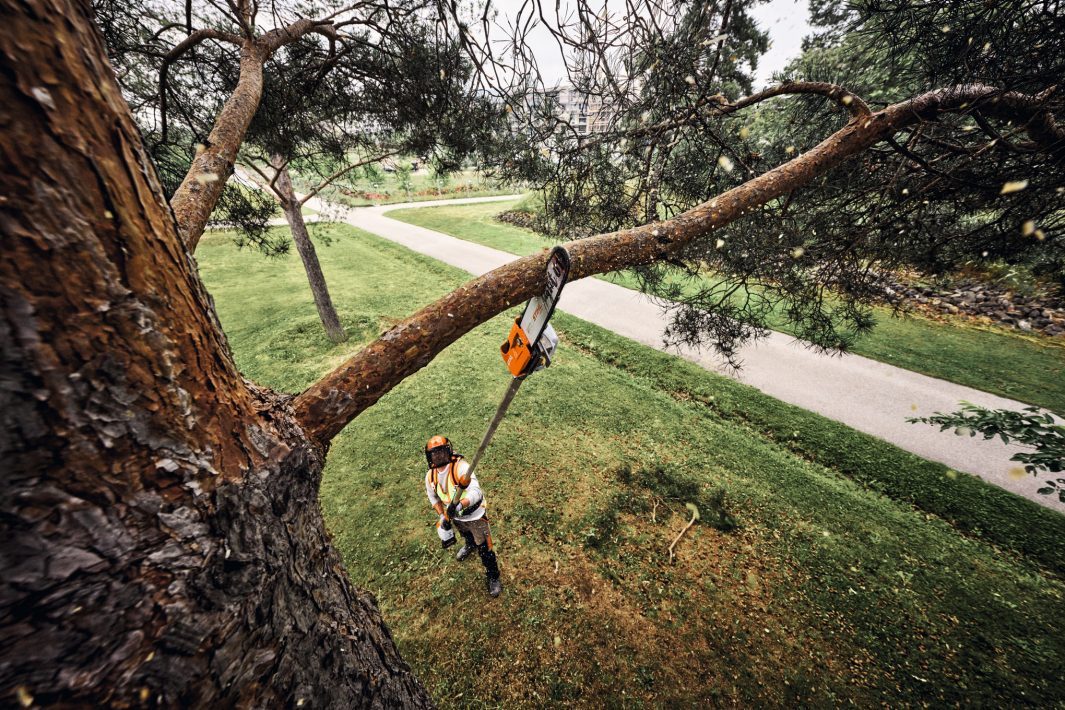

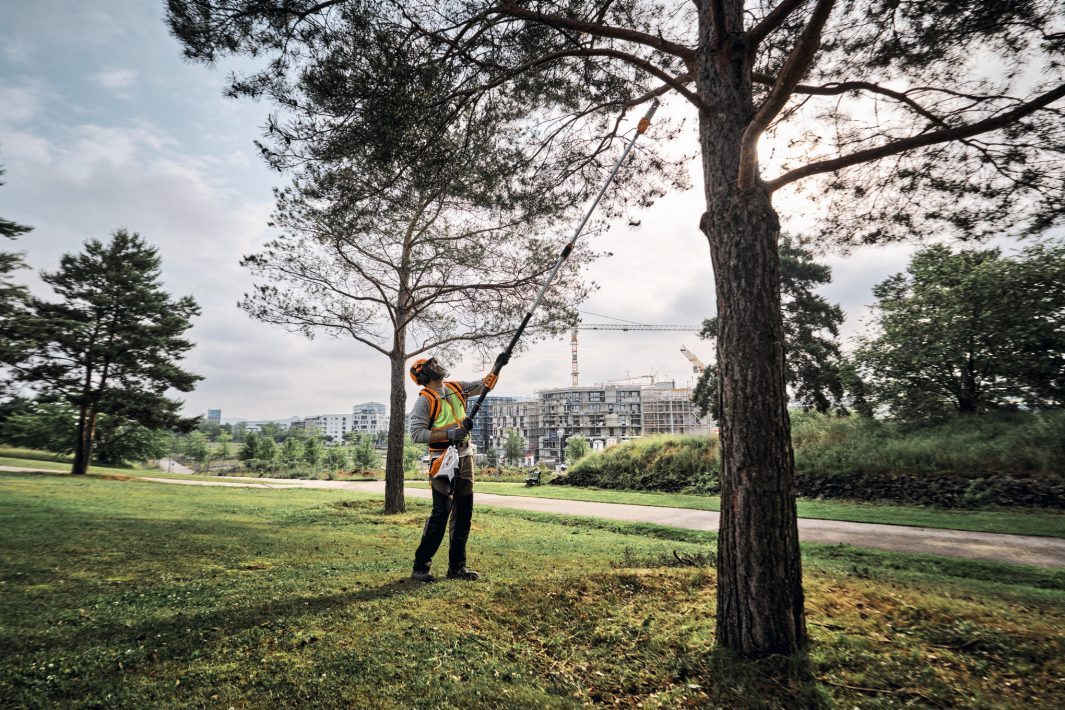

The STIHL HTA 160 is designed for professional users in arboriculture, fruit growing, local authorities, agriculture and forestry who want to combine high cutting performance with variable reach. With a 30 cm bar, 1.40 kW output and a professional telescopic shaft from 285 cm to 405 cm, it is suitable for limbing, removing deadwood, clearing storm damage and pruning fruit trees.
Common problems
For demanding limbing at height, less powerful pole pruners often reach their limits:
- Lower power classes struggle with branches up to 20 cm in diameter.
- Without weather protection, outdoor work in changeable weather is hard to plan.
- Lack of digital connectivity makes managing several machines in a fleet more difficult.
Solution
The STIHL HTA 160 tackles this with 1.40 kW output for branches up to 20 cm in diameter, IPX4 splash protection for work in the rain and preparation for the Smart Connector 2 A for digital equipment management in a professional fleet.
Key features
- ✅ Professional telescopic shaft from 285 cm to 405 cm for long reach
- ✅ 1.40 kW output for demanding tree care and fruit tree pruning
- ✅ 30 cm bar length for cutting branches up to 20 cm in diameter
- ✅ Rigid square profile for precise positioning at greater heights
- ✅ IPX4 protection for professional use, even in the rain
- ✅ Prepared for Smart Connector 2 A for digital equipment management
Highlights
CONSTANT POWER
Intelligent electronics keep the power constant, even as the battery loses charge during work.
IPX4 protection
Protects against splashing water from all directions, making the pole pruner more dependable for professional outdoor work.
Professional telescopic shaft
Offers high rigidity when extended, supporting precise positioning of the cut.

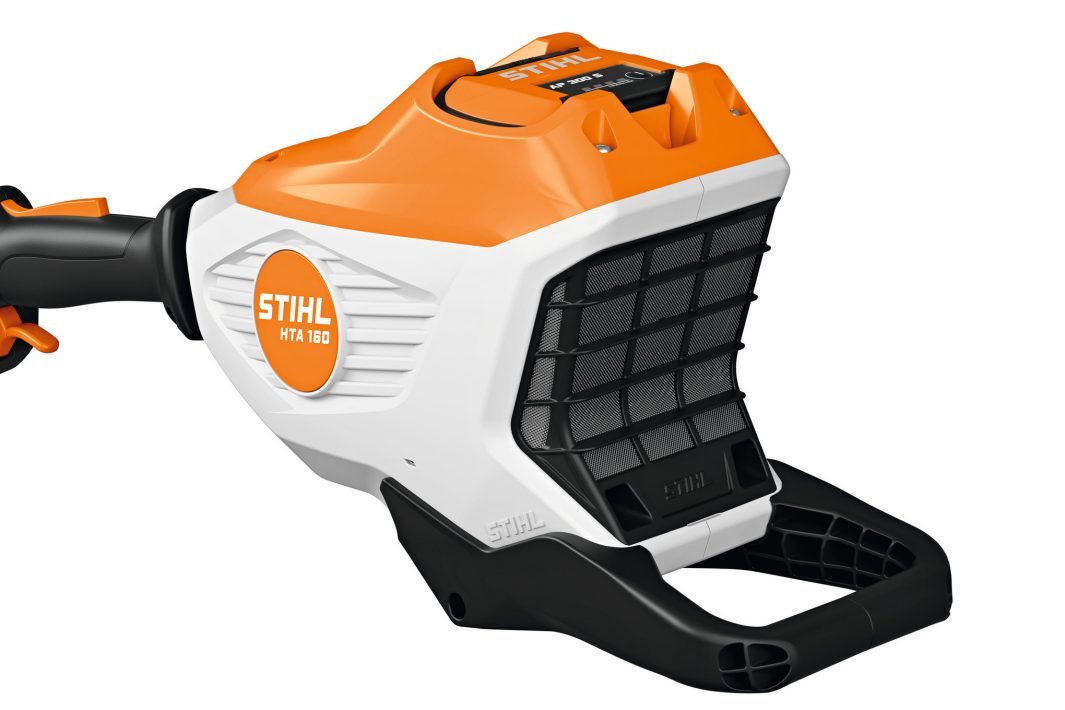

Magnesium gearbox
Reduces weight at the cutting head without compromising durability for professional use.
Sprocket cover with sighting line
Supports directional control when positioning and sawing, combined with side chip ejection.
Technical data
| Nominal voltage | 36 V |
| Power consumption | 1.85 kW |
| Power | 1.40 kW |
| Recommended battery | AP 300 S |
| Weight without battery | 6.9 kg |
| Chain pitch | 1/4″ P |
| IP protection rating | IPX4 |
| Sound pressure level | 85 dB(A) |
| Sound power level | 97 dB(A) |
| Vibration value left | 4,3 m/s² |
| Vibration value right | 5,1 m/s² |
| Overall length min. | 285 cm |
| Overall length max. | 405 cm |
| Bar length | 30 cm |
In the box
- STIHL HTA 160 cordless pole pruner
- 30 cm cutting attachment
- Stand
- Supplied without battery
- Supplied without charger
Frequently asked questions (FAQ)
Who is the STIHL HTA 160 suitable for?
The STIHL HTA 160 is aimed at professional users in arboriculture, fruit growing, local authorities and forestry who want to reach branches in a controlled way from the ground.
Which branch diameters is the HTA 160 suitable for?
With the 1/4″ P saw chain, branches and trees up to 20 cm in diameter can be cut.
How heavy is it and what is its overall length?
The STIHL HTA 160 weighs 6.9 kg and has an overall length of 285 cm to 405 cm.
Which battery is recommended?
The STIHL AP 300 S is recommended for the full 1.40 kW output.
What is included?
The pole pruner with 30 cm cutting attachment and stand is included, but without battery or charger.
Safety information & manufacturer details
Using a chainsaw requires experience and safe handling of the tool.
Before first use, familiarise yourself with the operation and the applicable safety regulations.
Please also note the requirements for suitable protective clothing such as chainsaw trousers, safety boots, gloves and a safety helmet with face and hearing protection.
If you are unsure about operating the machine, we recommend a personal handover and instruction from an authorised STIHL dealer.
- Read the operating instructions and safety information in full before first use.
- Wear suitable personal protective equipment.
- Use chainsaws only for their intended purpose.
Manufacturer information
STIHL Vertriebszentrale AG & Co. KG
Robert-Bosch-Straße 13
64807 Dieburg, Germany
Phone: +49 6071 204-0
Email: kundenservice@stihl.de
Data use information (Regulation (EU) 2023/2854)
| Connected products | All STIHL products connected to ‘STIHL connected’. |
| Access to product data | Product data is available in the ‘STIHL connected’ application. The product must be added first. |
| Deleting the user account | When your organisation is deleted, all linked data is removed, subject to statutory retention obligations. |
| Product data collected | Operational readiness status, service information and runtime data. |
| Data format | CSV file (Excel-compatible). |
| Data volume | Less than 1 MB per connected product. |
| Collection | Continuously in real time. |
| Storage location | Cloud infrastructure of the STIHL Group. |
| Storage period | Until the organisation is deleted, taking statutory retention periods into account. |
